ACT 1991 Geo Prizm HD/Race Sprung 4 Pad Clutch Kit

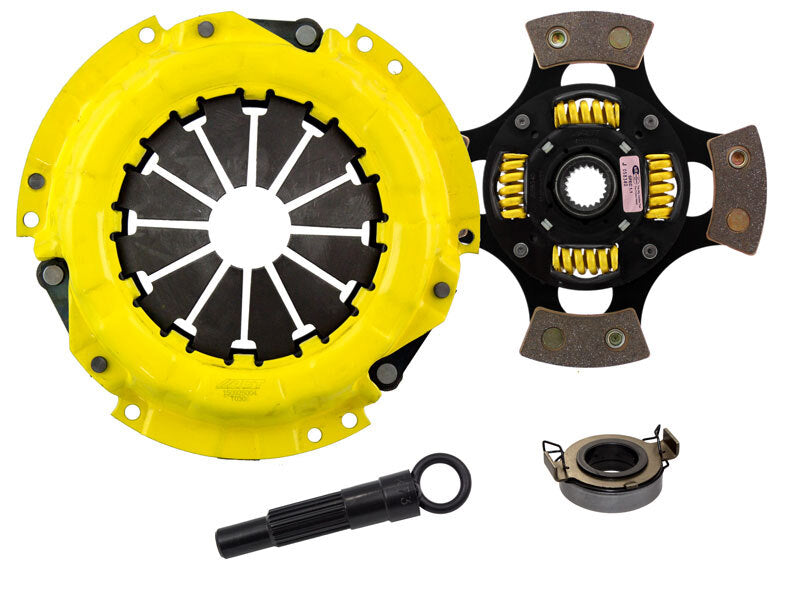

TC2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-1997	Geo	Prizm	Base
1991-1992	Geo	Prizm	GSi
1993-1997	Geo	Prizm	LSi
2003-2008	Pontiac	Vibe	Base
2003-2006	Pontiac	Vibe	GT
2000-2005	Toyota	Celica	GT
2000-2005	Toyota	Celica	GTS
1991-1997	Toyota	Celica	ST
1992-1997,2009-2011	Toyota	Corolla	Base
1997-2008	Toyota	Corolla	CE
1993-1997	Toyota	Corolla	DX
1993-1995,1997-2008	Toyota	Corolla	LE
2001-2013	Toyota	Corolla	S
1998-2000	Toyota	Corolla	VE
2005-2006	Toyota	Corolla	XRS
2003-2013	Toyota	Matrix	Base
2003-2008	Toyota	Matrix	XR
2003-2006	Toyota	Matrix	XRS
2000-2005	Toyota	MR2 Spyder	Base
