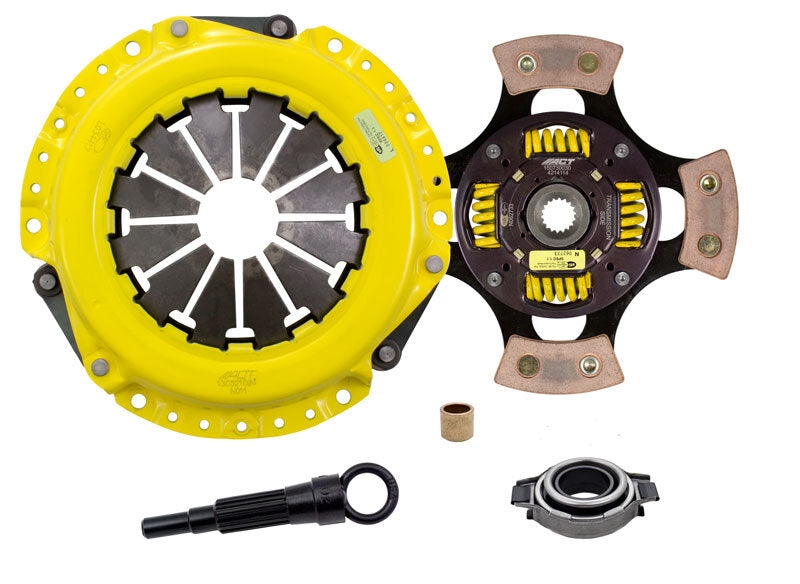

ACT 1996 Nissan 200SX HD/Race Sprung 4 Pad Clutch Kit

NX9-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Installation Instructions
Warranty


This Part Fits:

Year	Make	Model	Submodel
1991-1996,1999-2002	INFINITI	G20	Base
1994-1996,1999-2002	INFINITI	G20	T
1995-1998	Nissan	200SX	SE-R
1991-1993	Nissan	NX	SE
1991-1993	Nissan	NX	XE
2004-2006	Nissan	Sentra	Base
2001-2002	Nissan	Sentra	CA
2000-2003	Nissan	Sentra	GXE
2004-2006	Nissan	Sentra	S
1998-2001	Nissan	Sentra	SE
1991-1994	Nissan	Sentra	SE-R
2000-2003	Nissan	Sentra	XE
